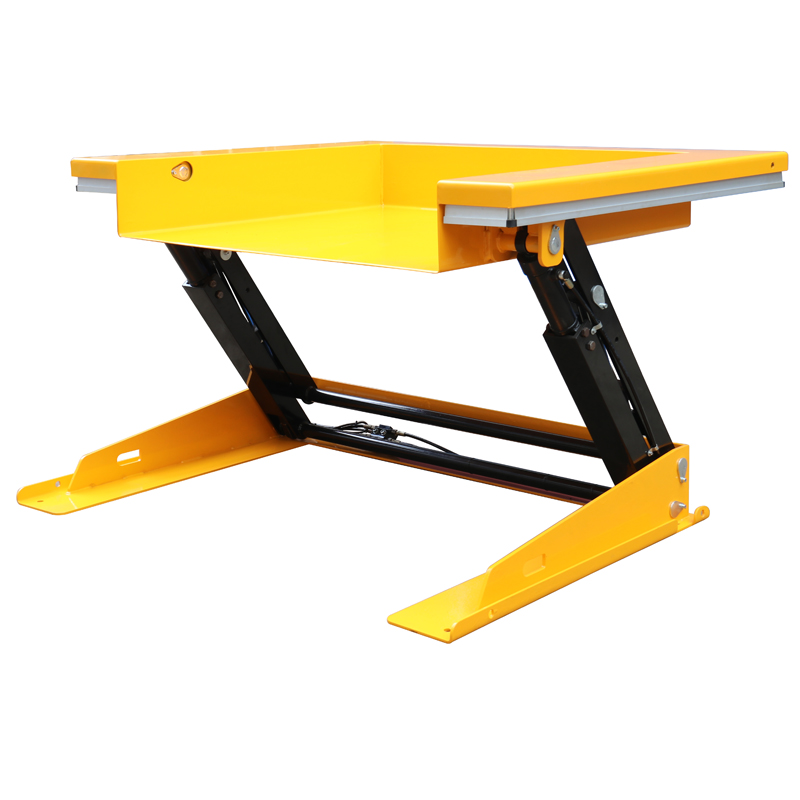

- Small platform for special size materials
- Meet EN1570 norm and ANSI/ASME safety standard
- Ergonomic structure design

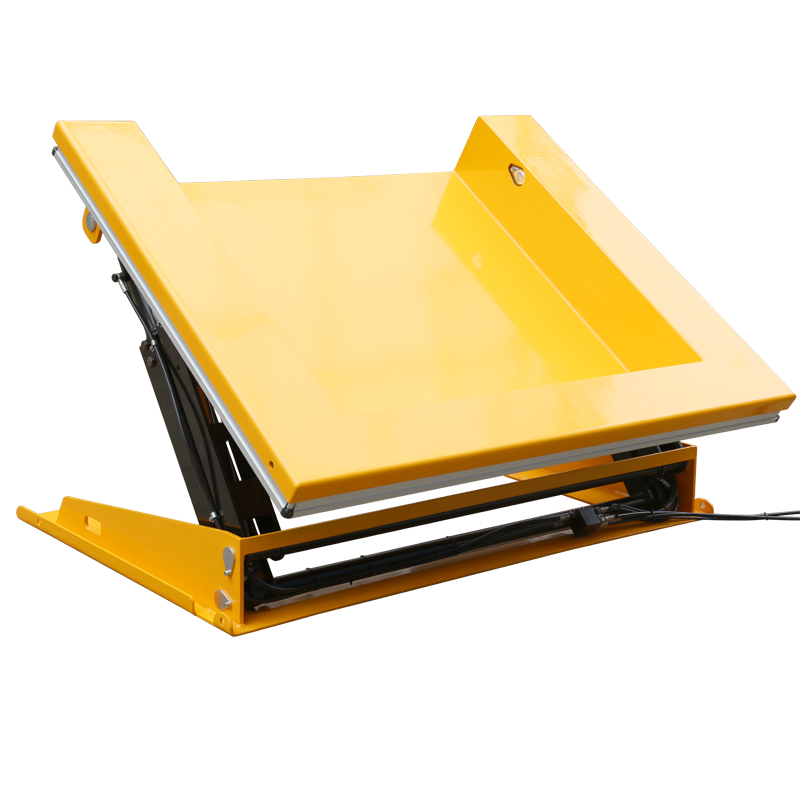

- One mechanism implements lifting and tilting to replace the traditional lift table
| i-lift br. | | 1314801 | 1314802 | 1314803 | 1314804 | 1314805 |
| Model | | ALT750 | ALT1500 | ALT1500UL | ALT1500UM | ALT1500US |
| Kapacitet | kg(lbs) | 750(1650) | 1500(3300) | 1500(3300) | 1500(3300) | 1500(3300) |
| Lowering Height | mm (inč) | 235(9.3) | 235(9.3) | 6(0.2) | 6(0.2) | 6(0.2) |
| Podignuta visina | mm (inč) | 820（32.3） | 820（32.3） | 820（32.3） | 820（32.3） | 820（32.3） |
| Platfrom Size LxW | mm (inč) | 1300x800(51.1x31.5) | 1300x800(51.1x31.5) | 1380x1730(54.3x68.1) | 1380x1510（54.3x59.4) | 1380x1310(54.3x51.5) |
| Tiltable degree | | 0∽-45° | 0∽-45° | 0∽-45° | 0∽-45° | 0∽-45° |
| Vrijeme podizanja | sec | 18 | 16 | 16 | 16 | 16 |
| Power Pack | | 0.75kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Neto težina | kg(lbs) | 300(660) | 355(781) | 440(968) | 410(902) | 390(858) |
